Azores Seismic Events

Mag Depth Date Time Region

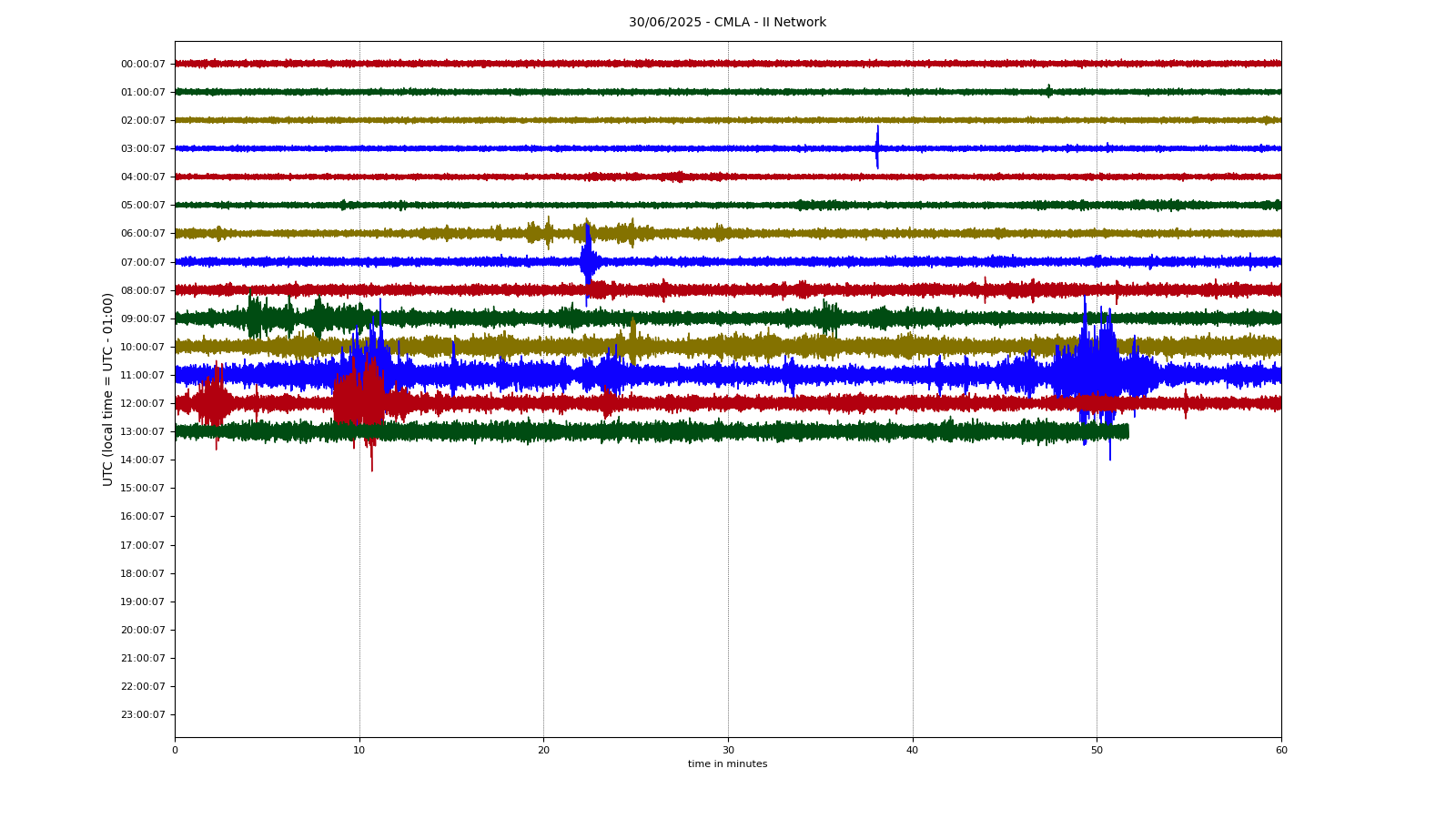

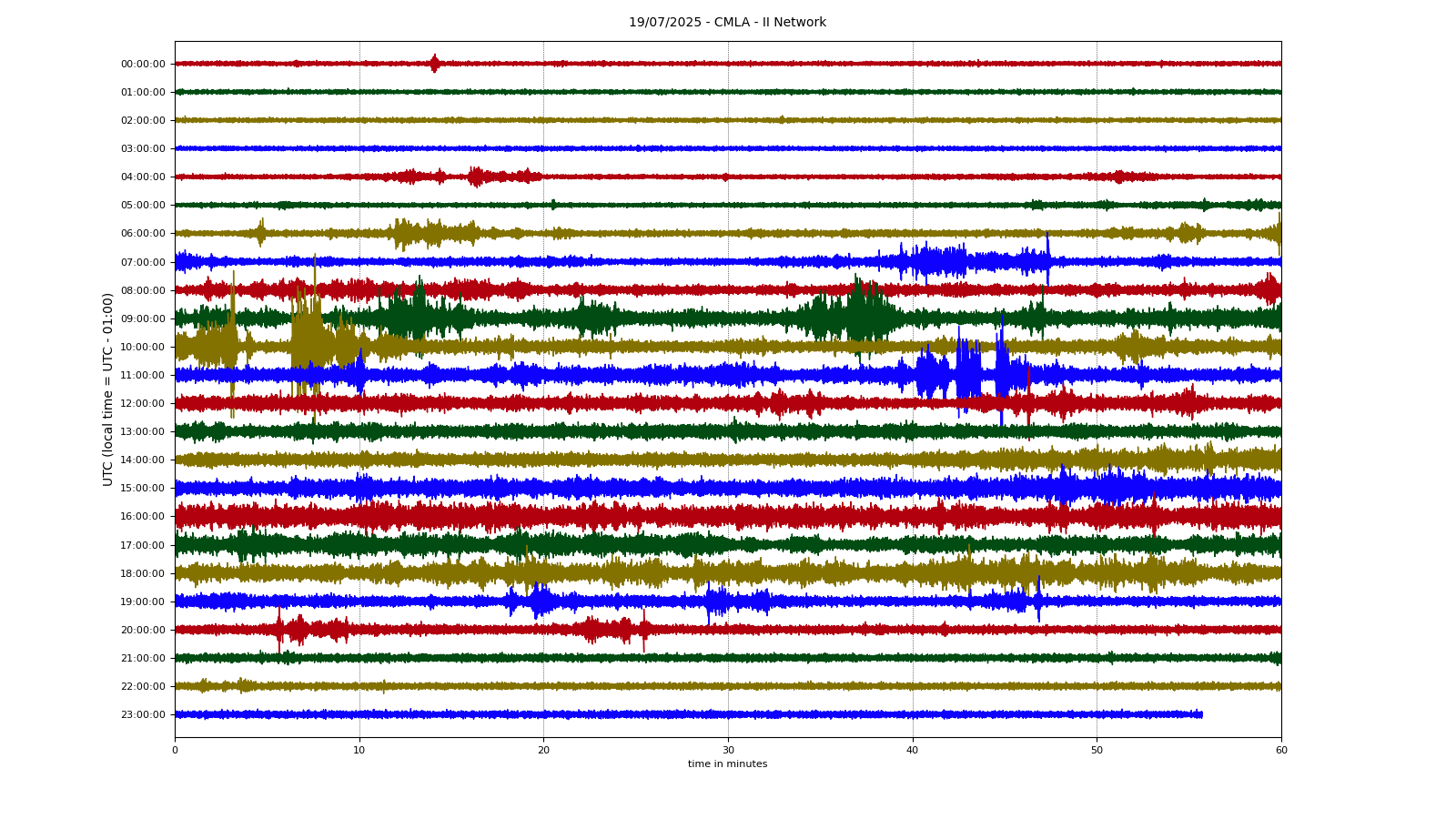

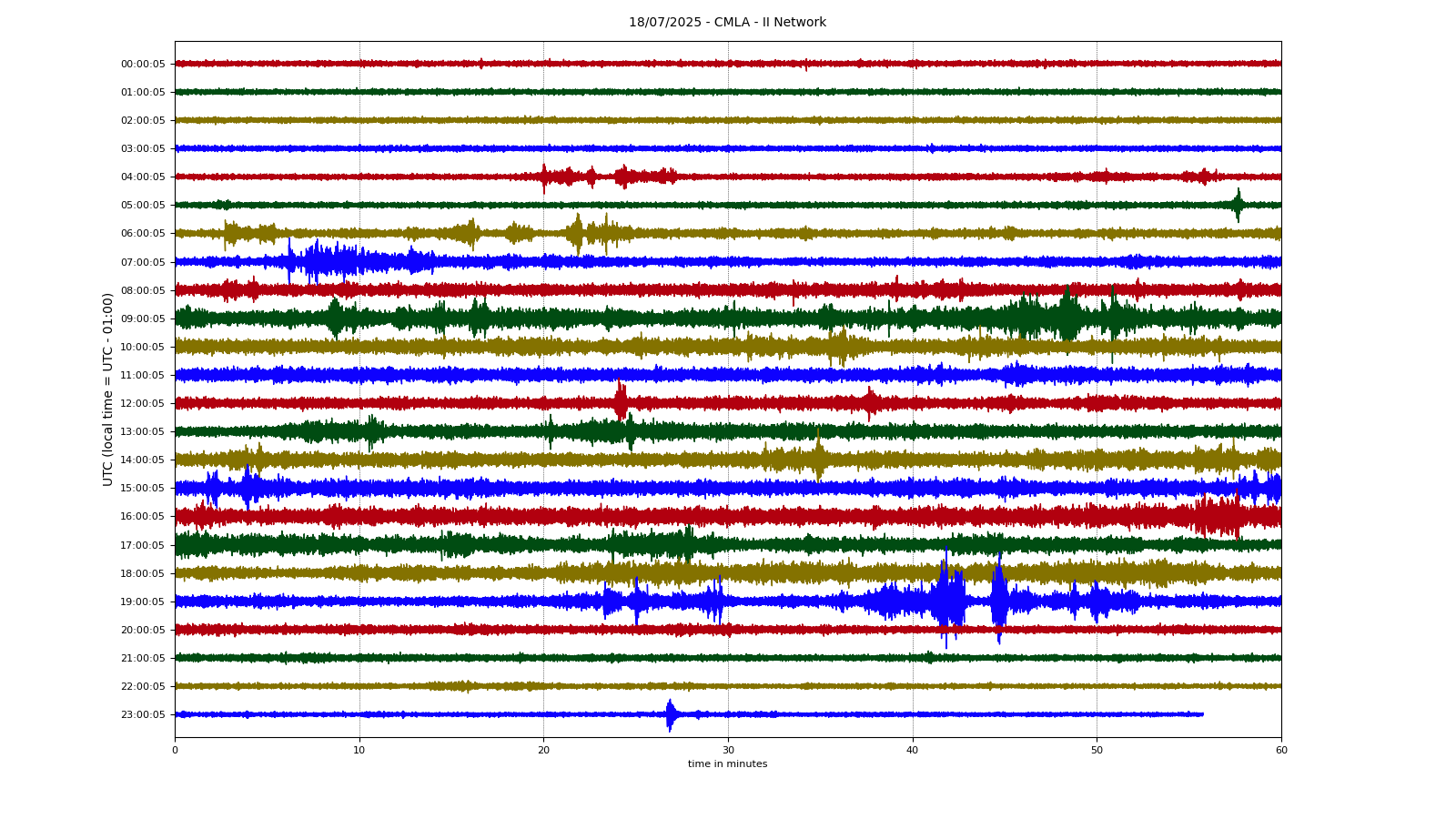

São Miguel - Azores - CMLA Seismic Station - II Network (FDSN II Network)

DATA from IRIS. Processed with ObsPy

Data updated every 4 minutes. Please refresh once a while.

On Mobile Phones, click on the image to zoom in/zoom out.

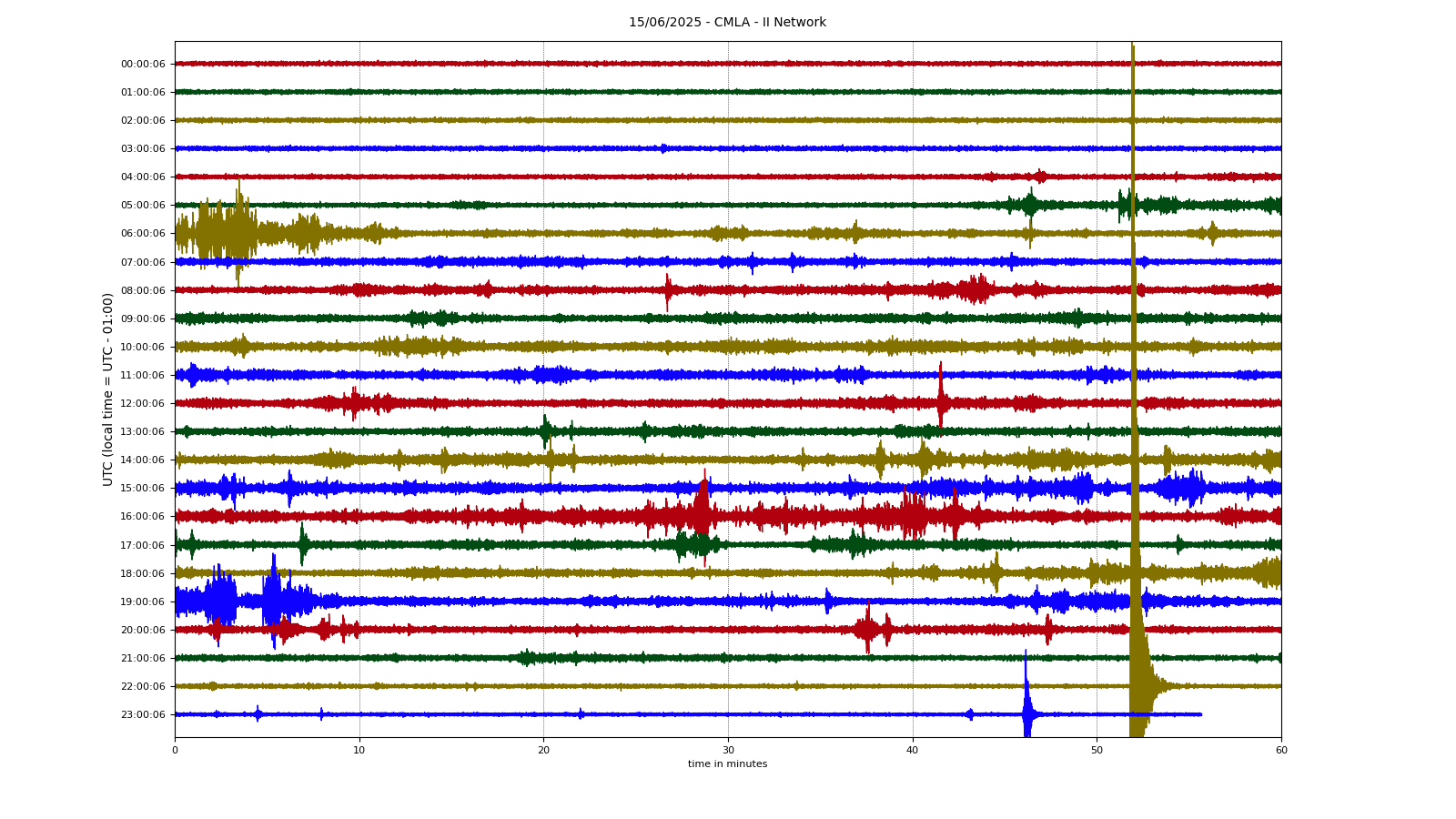

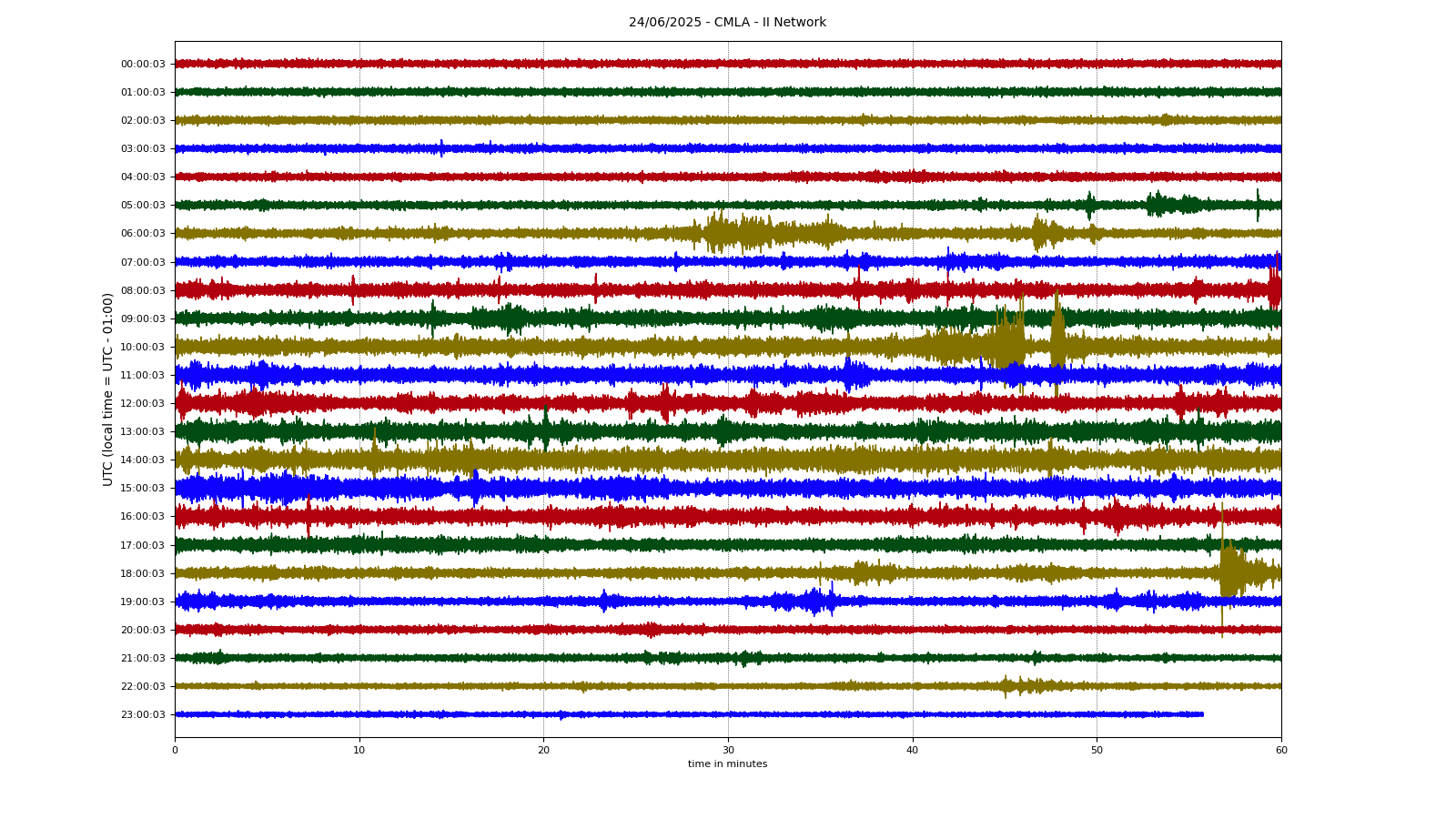

BHZ channel - 40Hz - Highpass filter 1Hz - Lowpass filter 5Hz

This seismic station is located in São Miguel island (Azores), around +-2km West of Fogo Volcano (Agua do Pau Volcano).
It´s running at 40SPS, during week days, some human noise is present, mainly during daytime.

Seismic events table, from IPMA.

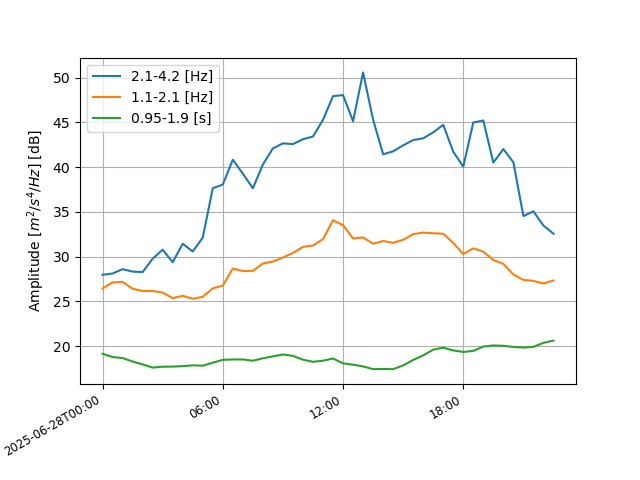

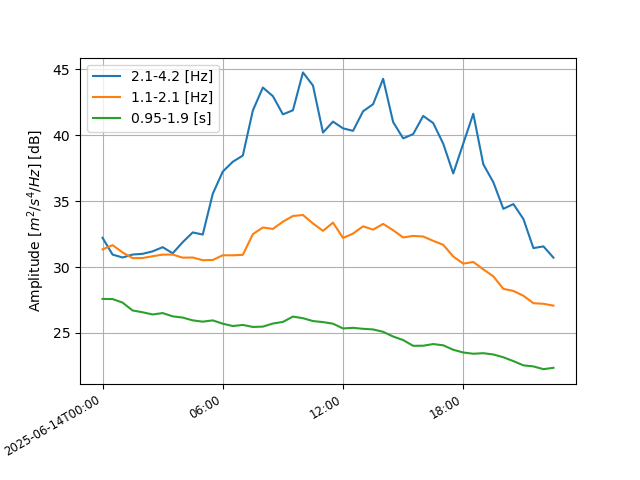

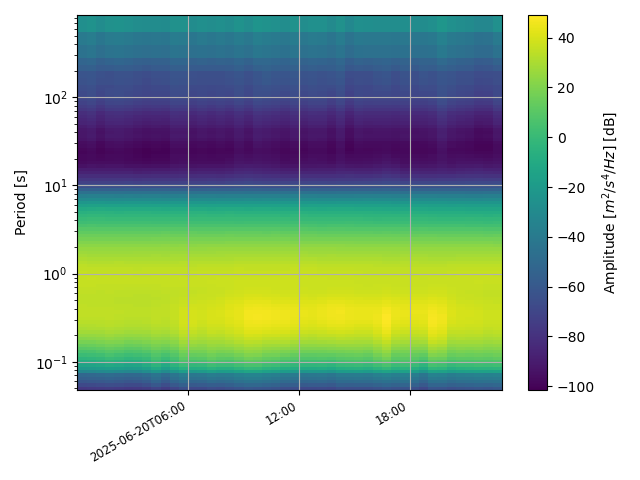

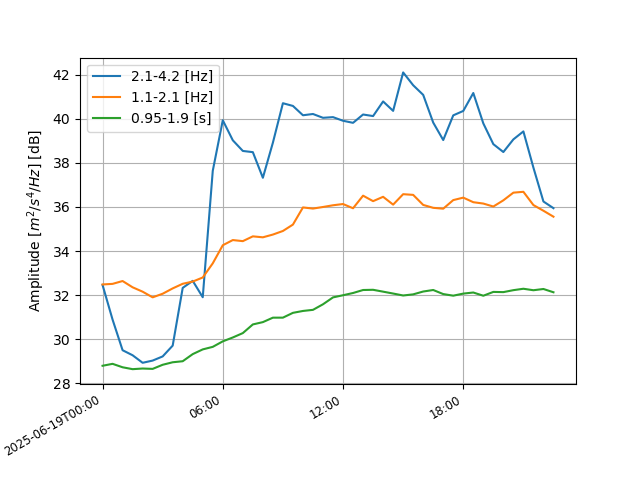

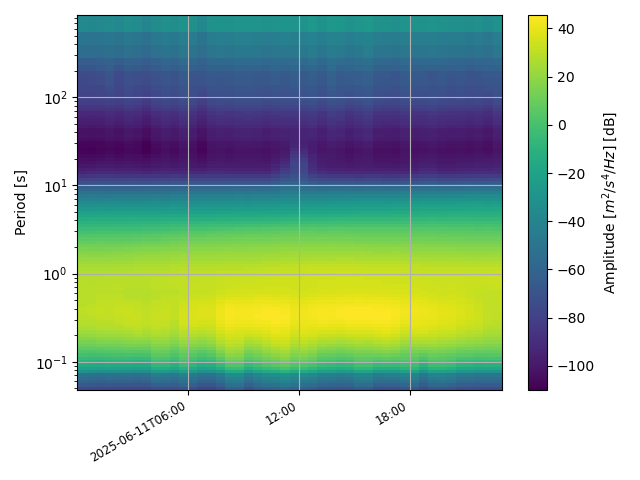

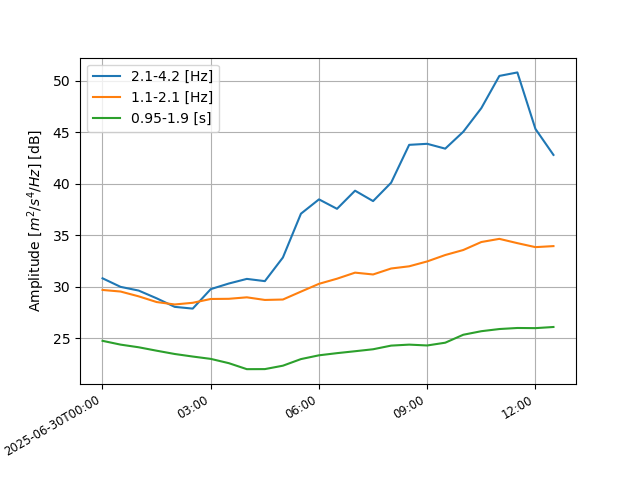

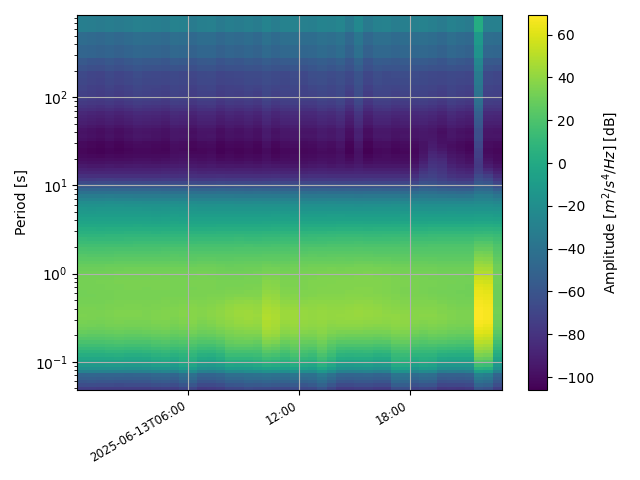

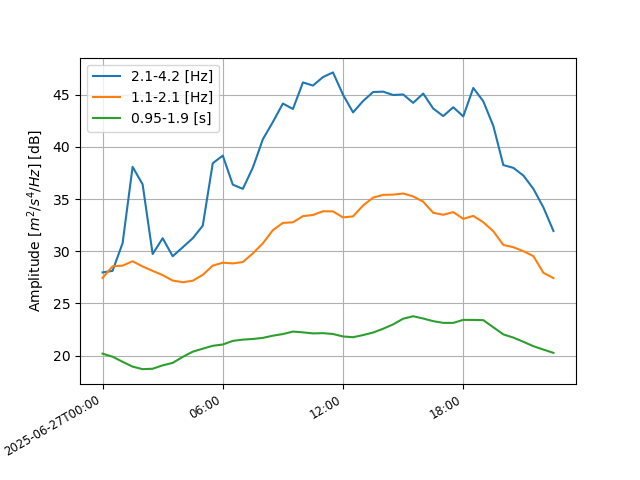

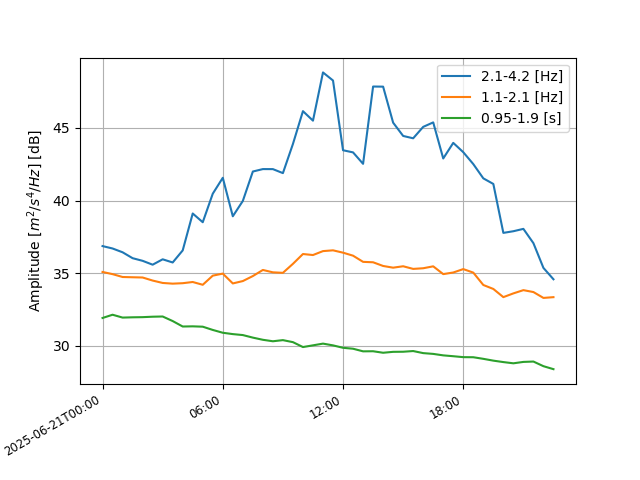

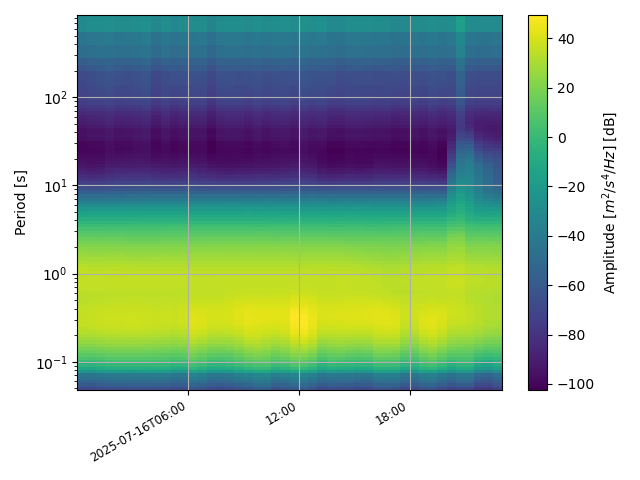

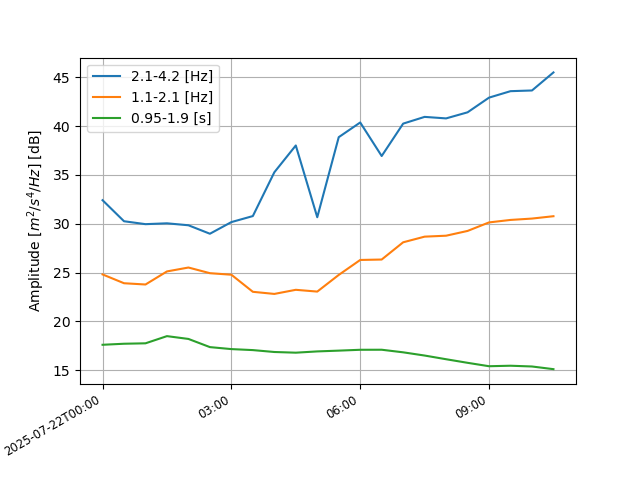

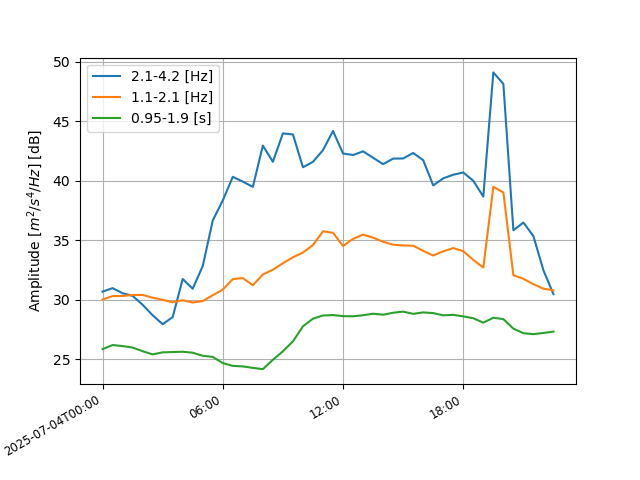

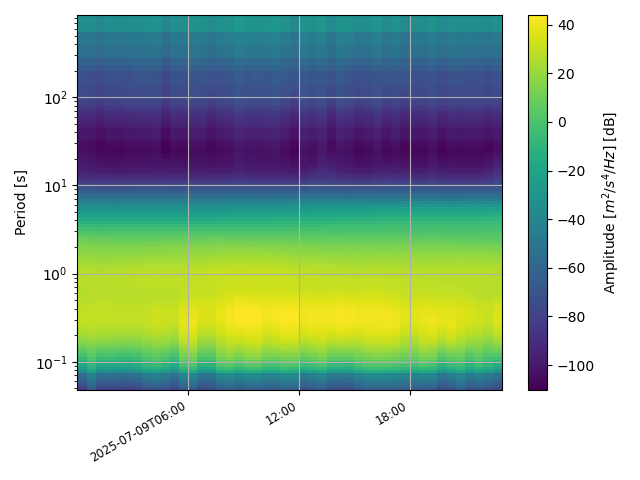

Testing PPSD and Spectogram (1Hz highpass - 5Hz Lowpass)

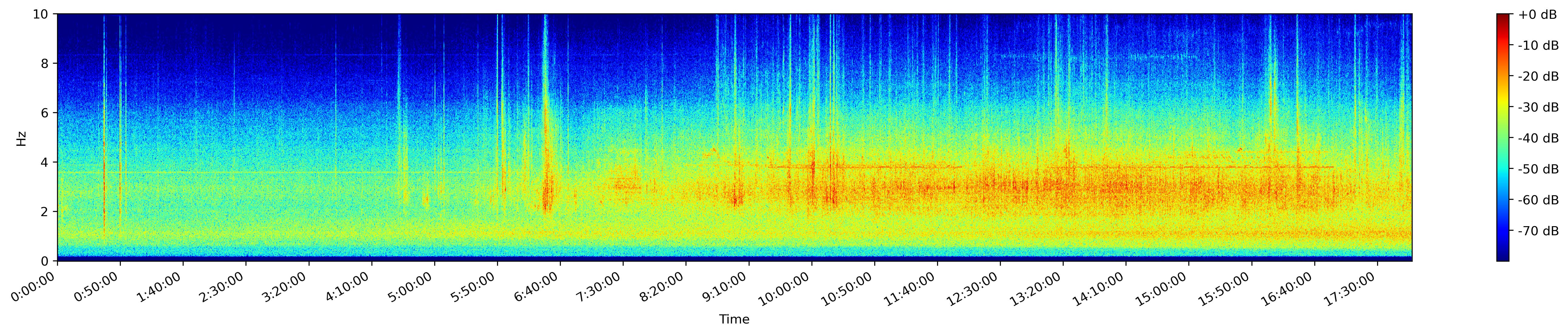

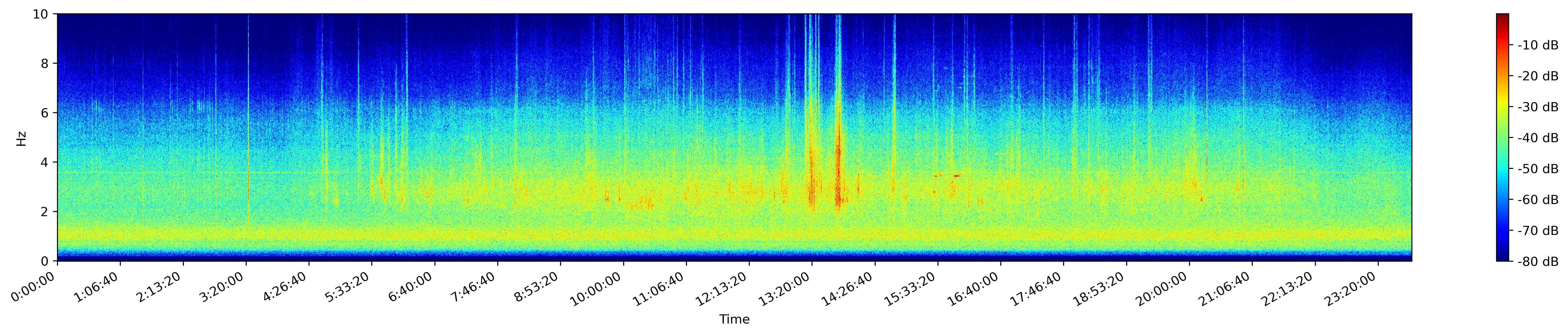

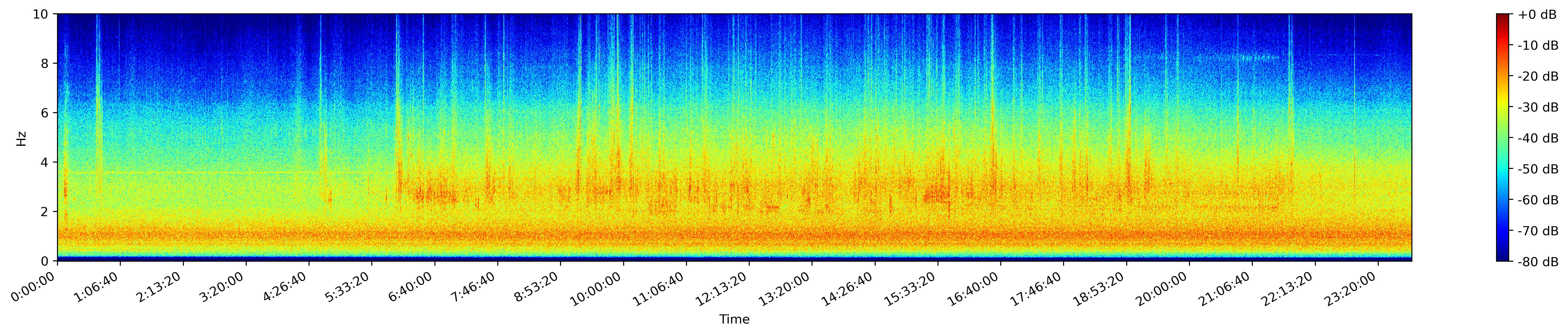

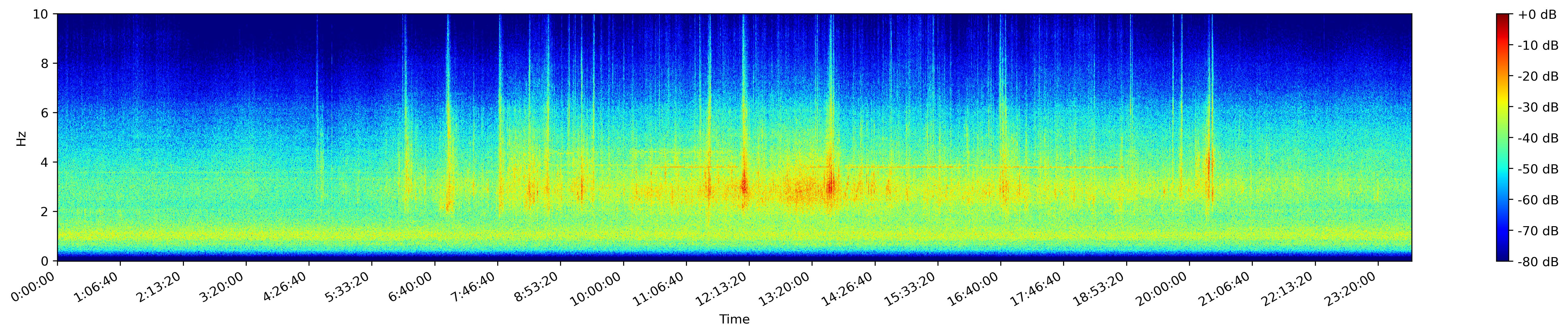

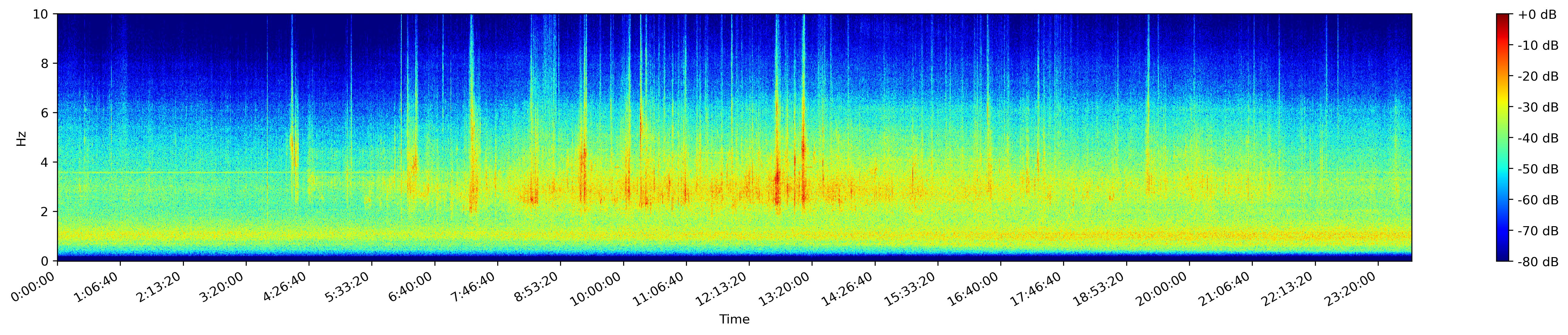

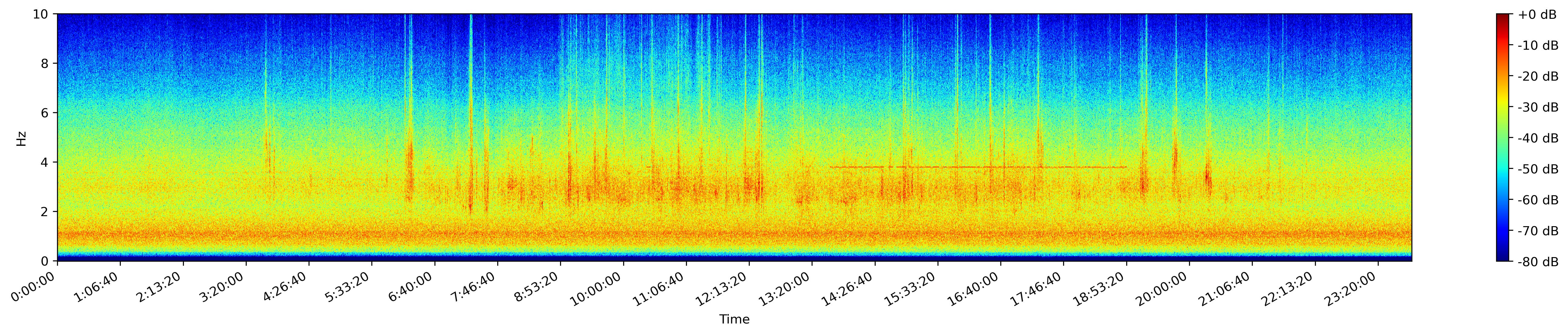

Spectogram (1Hz highpass filter)

Previous Days


MSEED - CMLA.II.10.BHZ.2025

Use with SeisGram2K (JAVA), Obspy (PYTHON), etc. A small tutorial in how to find hybrid events using SeisGram2K is found here.

09/06/2025 (160) 10/06/2025 (161) 11/06/2025 (162) 12/06/2025 (163) 13/06/2025 (164) 14/06/2025 (165) 15/06/2025 (166) 16/06/2025 (167) 17/06/2025 (168) 18/06/2025 (169) 19/06/2025 (170) 20/06/2025 (171) 21/06/2025 (172) 22/06/2025 (173) 23/06/2025 (174) 24/06/2025 (175) 25/06/2025 (176) 26/06/2025 (177) 27/06/2025 (178) 28/06/2025 (179) 29/06/2025 (180) 30/06/2025 (181)
